New Barfeed Systems Offer Reduced Downtime

15 March 2012

As the new UK agent for leading barfeed manufacturers Samsys and Top Automazioni, Machine Tool Engineers Ltd is delighted to offer the UK marketplace a completely new selection of barfeed solutions that can improve productivity, cycle times and reduce machine set-ups considerably.

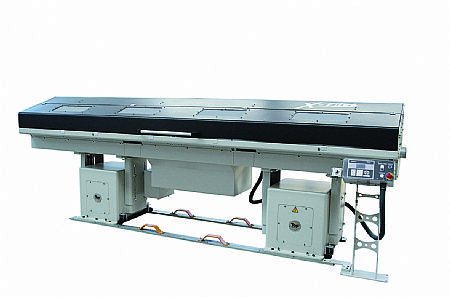

As the leading Italian barfeed manufacturer, the new Top Automazioni range now includes the exciting new series of X-Files barfeeds and the Fusion barfeed. The new X-Files barfeed is ideally suited to fixed head turning centres and can completely pass from one bar diameter to another in less than 90 seconds, a significant benefit over competitor barfeeds. Whereas most barfeeds can take up 30 minutes to change from one diameter to the next, the innovative new X-Files takes only 90 seconds to change over from say a 10mm bar to a 60mm bar. Many customers of Top Automazioni have taken advantage of this by doing short batch work during the day and changing over to long batch work to run lights out in the evenings. Thus improving productivity and reducing machine downtime and set-ups.

The X-Files model is capable of processing 10mm to 110mm bar & has 4 length options available 2.1, 3.2, 4.1 and 6.1m. With a feeding speed from 0 to 500mm/sec. It weighs in at a impressive 2,200 kg - 2,500kg, significantly heavier than rival machines. The X-Files range offers a remarkable feeding speed with a bar capacity that enhances the potential on unmanned or lights-out machining. Additionally, the rigid design structure guarantees that the bar is fed from a rigid location, which improves surface finishes, tool life and minimises noise and vibration. Customers can also choose from 3 loading systems. fork lifter designed to make it easier to lift heavy bars, a 3-tiered loading system with each tier holding 300mm of bar stock and a single tier holding 250mm. Alternately, an extra steady block is available to self activate for any bar diameters below 20mm. These innovative features make the Top Automazioni X-Files the most efficient barfeed on the market.

Alongside the X-Files is the new Fusion series of barfeed systems that has been developed specifically for the turning of small bar diameters from 6 to 45mm and 8 to 52mm diameters depending upon the selected model. The Fusion incorporates the same functional features as the market leading X-Files range to ensure that the benefit of reduced downtime, set-ups and improved productivity are available to manufacturers of small turned parts.

With a lightweight design and shaped steady block sets, the new Fusion series can be introduced to any machine shop regardless of whether the end user is operating collet or chucking lathes. To ensure that Machine Tool Engineers Ltd can meet the diverse demands of the turned parts market, the Buxton based business also offers the Top Automazioni range of Magic Bar Feeds from 8mm -110mm with a 1.6m maximum length; the Record Barfeed, the Beta 1 & 2, the Return and Matrix Series of barfeeds.

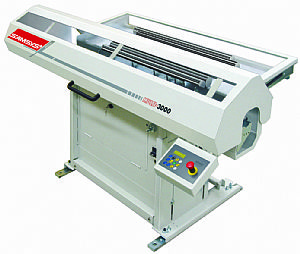

Complementing the Top Automazioni range of barfeeds, Machine Tool Engineers Ltd is also a UK agent for the renowned Samsys barfeed range. The available Samsys barfeeds include the Multi3000 series that is a 1.2 to 1.5m barfeed with a diameter range from 5 to 65mm. Ideal for machine shops with limited space availability, the Samsys Multi3000 can accommodate round, hexagonal and shaped bar with uniform or random bar lengths. As an all electric unit, the Multi3000 requires no regular maintenance and has very low running costs. The Multi3000 offers the end user easy handling, re-loading and operation to ensure it slots straight into any machine shop environment.

For a more comprehensive solution Machine Tool Engineers Ltd can also offer the Samsys 'Winning Sam' concept that allows the automatic loading and unloading of slugs, shafts and parts. For single spindle machine tools it also offers that ability to turn the components for automated rear-end working. Capable of working with bar diameters from 8-80mm with bar lengths up to 1600mm, the 'Winning Sam' provides the complete automation solution for the end user.

With such an expansive range of barfeeds, Machine Tool Engineers Ltd can support the vast product range with extensive service and support packages that incorporate an exemplary service department that offers the UK's most comprehensive Sameca parts availability for its Samsys barfeeds. Machine Tool Engineers Ltd now offers the most capable, diverse and efficient barfeeding equipment available in the UK.
