Universal eXcellence in milling

22 December 2021

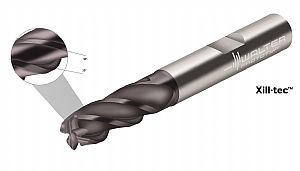

With the new Xill·tec™ product family, Walter is presenting a new milling range; the MC230 Advance product range solid carbide milling cutters. The new solid carbide end mills demonstrate a high-performance geometry with an asymmetrical helix (35°/38°) that has been combined with Walter's innovative wear-resistant and high-performance WK40TF grade.

The result is a family of high-performance tools that also offer universal applicability for rough and finish machining. The milling experts at Walter have consolidated the developments of the past ten years into the Xill·tec™ range – the result is an asymmetrical helix. This is the most important feature of the geometry as it enables smooth, vibration-free operations. This is essential for extending tool life and process reliability. Fractures are avoided and the high level of operational smoothness contributes to the soft cutting action and low cutting forces generated by the Xill·tec™ milling cutter.

The solid carbide milling cutters are suitable for all ISO material groups (P, M, K, N and S) and cover all common milling operations. This includes everything from shoulder milling, ramping, (helical) plunging and full slotting up to 1XD while exhibiting high-performance levels. The impressive performance levels and material removal rates are also achievable when undertaking innovative machining strategies such as dynamic milling. The Xill-tec MC230 end mills are available in diameters from as small as 2mm through to 25mm and depending upon the chosen diameter, the Xill-tec MC230 is available with corner radius options up to 4mm. The corner radius options prolong tool life and extend performance levels during heavy material removal applications or when machining challenging materials.

The comprehensive range also contributes to the universal applicability of Xill·tec™. The milling cutters are available with a variety of options that includes centre cutting edge, reduced neck for enhanced stability, protective chamfer, cylindrical and Weldon shank and also with and without corner radii. The broad application range and an outstanding price/performance ratio makes the milling cutters an appealing option for users across a wide range of different industry sectors.
